Features
.

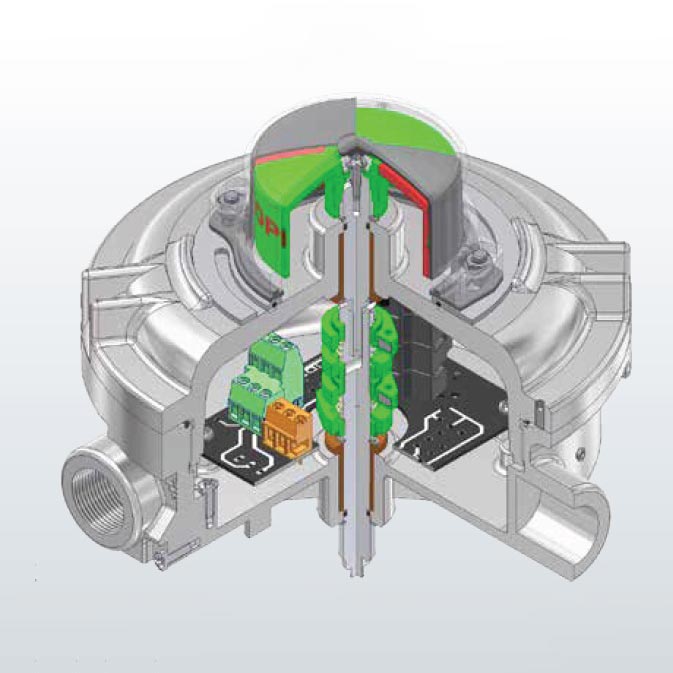

Twin shaft design, ensuring a complete sealed device.
The shaft is split in two parts, each fitted and sealed into
the body and cover for the best weather insulation even
during opening operation
.
Suitable for arctic application, down to -55 ?C
.
Integrated mounting kit for Namur actuators
.
Two cable entries, either metric or imperial
.
Enhanced corrosion resistance due to the thick polyester
powder coating on aluminum housings
.
316 L stainless steel housing for the maximum protection
in hostile and corrosive environments
.
Easy wiring through the terminal PCB board
.
NOVA V3. switch option ensures extreme durability
and high power switching capabilities
.
Concentric flame path design providing a self-centering
system aligning shafts for a precise engagement
.

Captive bolts on the screwed lid

Technical Data:
Materials
.
Copper free aluminum body and cover with polyester
powder coating
.
AISI 316 Stainless steel body and cover with electro
polished
finishing
.
Stainless steel fasteners and shafts
Approvals
ATEX, IECEx, EAC, CCOE, INMETRO
Ex II 2GD Ex d IIC T4/T5/T6 Gb
Ex tb IIIC T135/T100/T85?C Db
Ta: -55 ?C ≤ Ta ≤ 105 ?C / 80 ?C / 60 ?C
UL:
Class I Division 1 Groups B, C, D Division 2 Groups A, B, C, D
Class II Division 1 Groups E, F, G Division 2 Groups F, G
SIL certificate:
Up to SIL 3 certified by T躒
Protection rating:
IP 66 / 67
IP 66 / 68 up to 15 meters for 100 hours
Cable entries options:
Two cable entry M20 or 1/2” NPT
Temperature:
-20 ?C +80 ?C as standard temperature range
(depending on switch selection)
-55 ?C +105 ?C available on request
